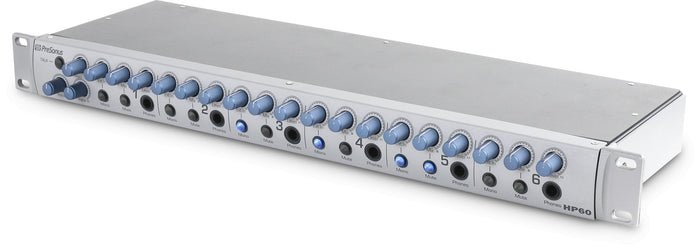

PreSonus 6-Channel Headphone Mixing System - HP60

Overview

“Turn my headphones up!” “More me, I can’t hear myself!” “Turn down that click!” If musicians can’t clearly hear what they want, their performance and attitude will suffer. With the PreSonus® HP60 headphone distribution system, you can easily resolve these problems and provide headphone mixes the musicians will love. That’s because the HP60 is more than a half-dozen headphone amps; it’s a field-tested, easy-to-use solution to a host of common headphone-monitoring issues.

The HP60 solves a host of common headphone-monitoring problems. Each of its six headphone amps puts out 150 mW; if you can't hear this headphone system, you're stone deaf. Two global input channels and a Mix control let you adjust the click for each musician. Individual inputs let you send each musician a custom mix for “more me.”

Each of the HP60’s six headphone amps has its own level control and is loud enough to drive the alligators out of the Louisiana swamps. And the HP60 lets you customize each mix. In addition to the two pairs of main stereo inputs, you get an external stereo input with level control, mono, and mute for each headphone channel. So you can send each musician a feed of just their instrument or voice and can control the level separately for each.

The HP60 features two sets of line-level, stereo inputs that are routed to all six headphones and a Mix control that sets relative levels for each headphone output. So you can feed the main control-room mix to channel A, feed the click signal to channel B, and use the Mix controls to individually raise or lower the click relative to the main mix for each musician.

Features:

• 6 screaming-loud (150 mW/channel) headphone amplifiers with individual level control
• 2 stereo input channels (A and B) with Mix control and Mute switch
• Talkback-microphone input with level control, Talk button, and footswitch jack
• 6 stereo 1/4″ external analog line inputs (1 per channel) for “more me” functionality
• 1 balanced XLR input for external dynamic talkback microphone

Specifications:

• Headphone Outputs: 6 x 1/4" TRS stereo unbalanced, 150 mW/channel
• Line Outputs: 6 x 1/4" stereo unbalanced (mirrors channel mix)
• External Inputs: 6 x 1/4" TRS stereo unbalanced (with trim controls)
• Main Line Inputs (A and B): 4 x 1/4" TRS balanced
• Talkback Input: 1 x XLR balanced for external dynamic mic
• Footswitch: 1 x 1/4" jack for Talkback
• Headphone Impedance Range: 32Ω - 600Ω
• Frequency Response: 20 Hz – 20 kHz, ±0.5 dB (60Ω load)
• Input Impedance: 10 kΩ
• Power: Internal supply, 115/230 VAC, standard IEC connector
• Dimensions (WxHxD): 19" x 1.75" x 5.5" (482.6 mm x 44.45 mm x 139.7 mm)
• Weight: 8.0 lbs. (3.63 kg)
• Chassis: 1U 19” rack-mountable rugged steel
