Overview

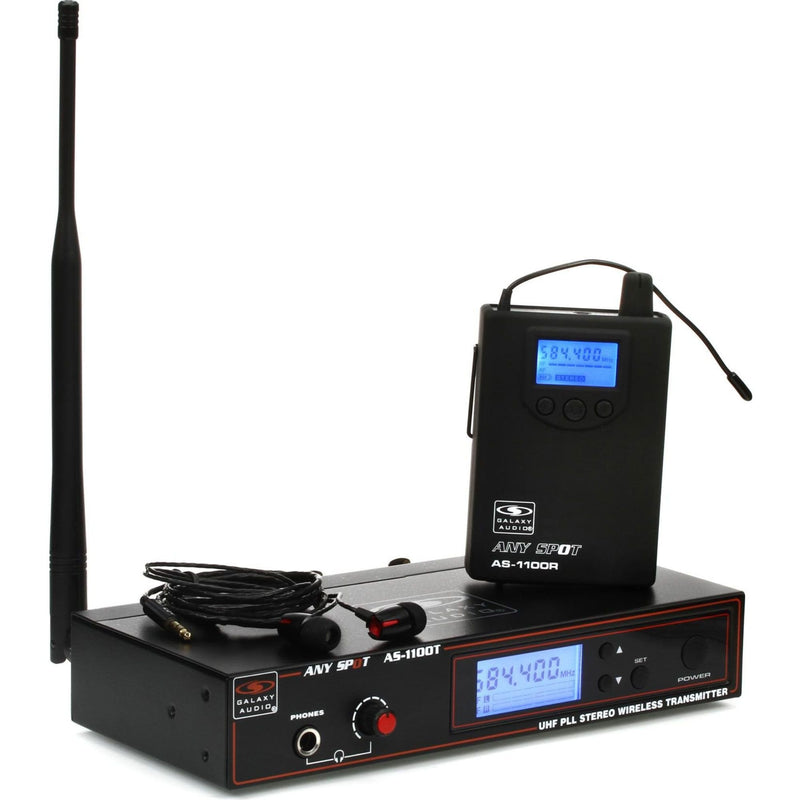

The Galaxy Audio AS-1100 packs an amazing punch. The wireless in-ear monitor transmitter has stereo XLR/1/4" inputs, headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and RF/AF indicator. Galaxy Audio's comfort EB4 premium ear buds feature titanium drivers, extended bass response, aluminum alloy construction, and come standard with all WPM models. This system comes in options of a Single system, Twin Pack system, and Band Pack system. The Galaxy Audio AS-1100 is perfect for anyone looking for their first system or to upgrade to the next level.
The Twin Pack and Band Pack Systems makes it easy for any duo or band to Get Personal. The Twin Pack system includes two wireless in ear monitor receivers and one transmitter. The Band Pack system includes four wireless in-ear monitor receivers and one transmitter. They are designed to get the duo or whole band wireless in one package. The Galaxy Audio AS-1100-2 and AS-1100-4 will allow a duo or band to send one stereo mix to 2 or 4 individuals. Additional transmitters may be purchased at a later date to add mixes.
An unlimited number of in-ear receivers may be added at any time.
Features
- 120 Selectable Channels
- UHF Frequencies
- Backlit LCD (Displays Channel Number and Freq.)
- Stereo or Mono Transmission

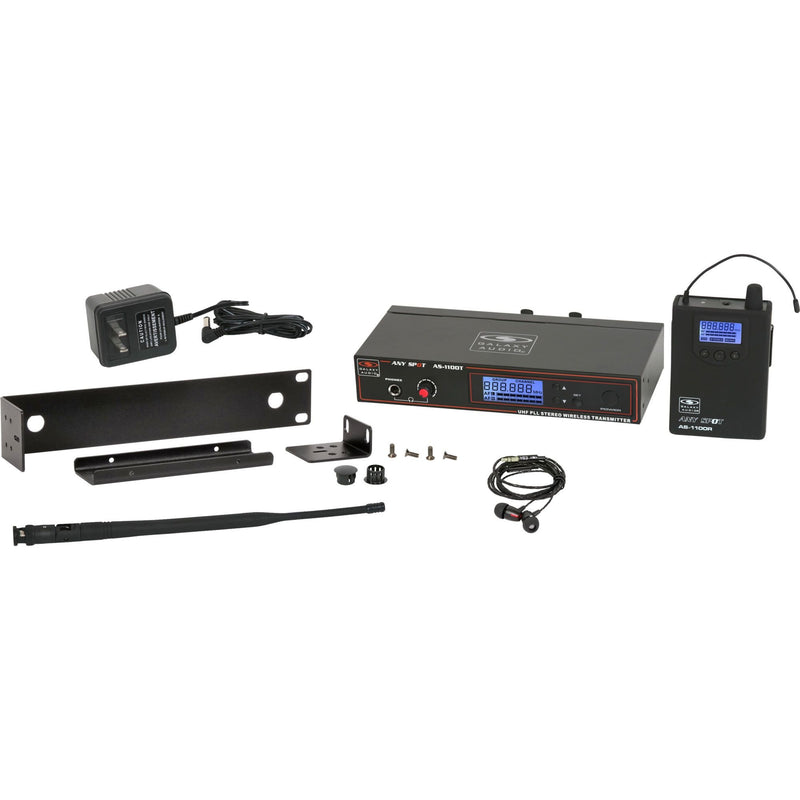

- Single Rack Mount Included
- 300' Range
- EB4 Ear Buds Included
- AS-1100T Transmitter
- Transmits in Stereo or Mono
- Light Up LCD Display
- Channel Number and Frequency
- 120 Selectable Channels
- XLR/1/4" Combo Input
- AF L/R Indicator
- RF Output 10 mW
- AS-1100R Receiver
- LCD Display with Backlight
- Earphone Output Volume Control
- 4 Bar Battery Life Indicator
- RF and AF Indicator
- 100 mW Headphone Output
- Ear Buds Included
- 3.5 oz (100 g)
Specifications
- AS-1100 SYSTEM:
-
Band: UHF
-
Frequency Range: CODE D 584 MHz - 607 MHz, CODE N 518 MHz - 542 MHz, CODE P2 470 MHz - 494 MHz
-
Frequencies: 120
-
Transmitter Output Level: 10 mW
-
Operating Range: Under Typical Conditions 300' (92m)
-
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
-
Audio Frequency Response: +/-3dB 70Hz~15kHz
-
Total Harmonic Distortion: <1% @ 1kHz
-
Signal to Noise: 85dBA
-
Dynamic Range: >90dB A-weighted
-
Operating Temperature: Range 14º F to 122º F (-10º C to 50º C)
-
Note: battery characteristics may limit this range
- AS-1100T TRANSMITTER:
-
Main Frame Size: EIA STANDARD 1/2 U
-
Modulation Mode: FM Stereo Modulation
-
RF Output: 10 mW
-
Max Audio Input Level: +6dBV
-
Gain Adjustment Range: 40dB
-
Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
-
XLR input: Impedance balanced
-
Pin 1: Ground (cable shield)
-
Pin 2: Audio +
-
Pin 3: No Audio -
-
Dimensions: 1.5" x 8.3" x 3.78" (38 x 212 x 96 mm)(HxWxD)
-
Weight: 21oz. (605 g)
-
Power Requirements: 12-18 V dc at 300mA supplied by external power supply
- AS-1100 RECIEVER:
-
Audio Output Level: 100 mW
-
Sensitivity: -94dBm for 30dB
-
Stereo Separation: 40dB (at 1kHz)
-
Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
-
Dimensions: 3.74" x 2.6" x 1" (95 x 65 x 25 mm)(HxWxD)
-
Weight: 3.5oz (100 g) without batteries
-
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
-
Battery Life: About 5 hours (alkaline)
