Overview

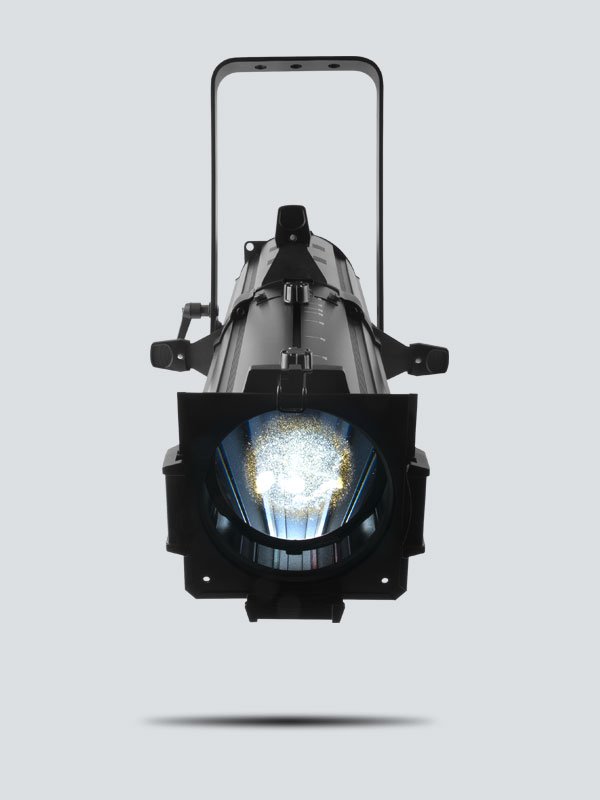

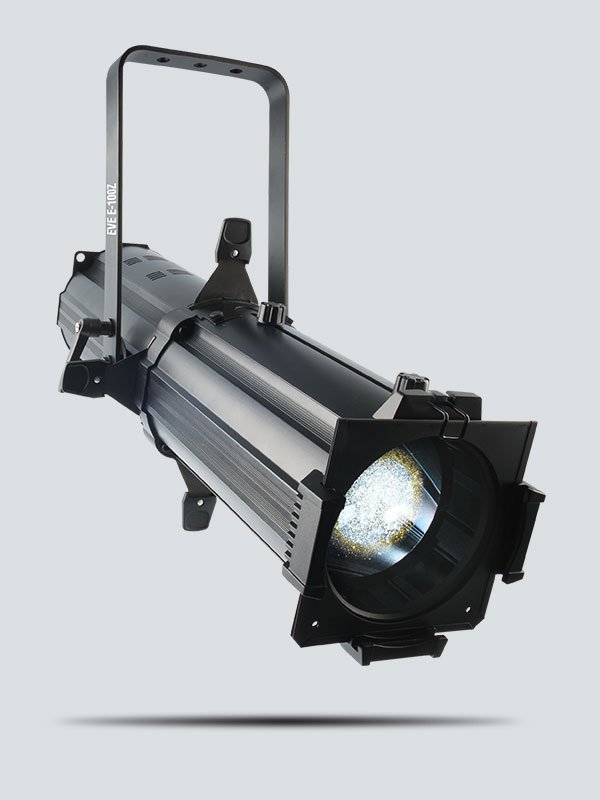

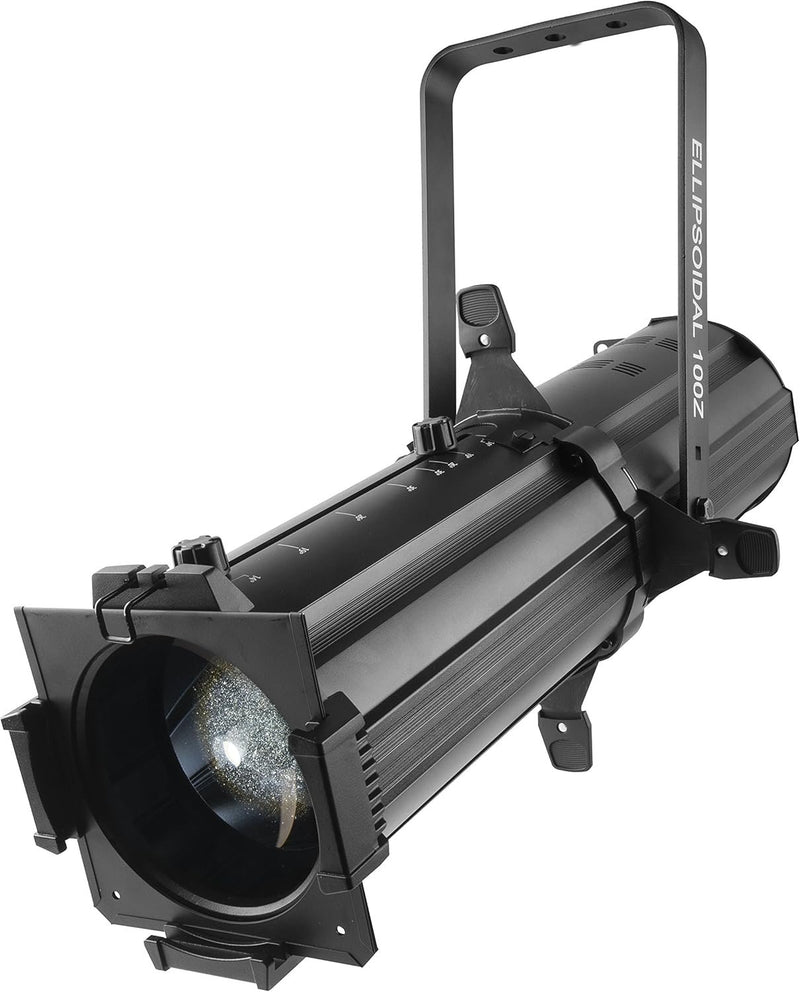

The Chauvet EVE E‑100Z is a high-performance LED ellipsoidal spotlight designed for theatrical, stage, and camera-use environments. With a powerful 100 W warm-white LED and flicker-free operation, this fixture delivers crisp, defined projection—ideal for gobos, pattern work, and precise framing. Manual zoom (14°–30°) and four integrated framing shutters allow tight beam shaping, while included gobo and gel holders make customizing quick and simple. Offering DMX control with local dimming and power linking for efficient deployment, the EVE E‑100Z provides reliable, versatile illumination in a sleek, rack-compatible housing.
Features:
-
100 W Warm‑White LED with a 50,000‑hour lifespan for consistent, maintenance-free output
-
Manual Zoom between 14° and 30° for versatile beam control
-
Flicker‑Free Dimming, suitable for on-camera work via local knob or DMX (1- or 3-channel)
-
Framing Shutters & Gobo/Gel Holders included for precise shaping and projection work
-
Power Linking supports 9 units (120 V) or 16 units (230 V) on a single line
-

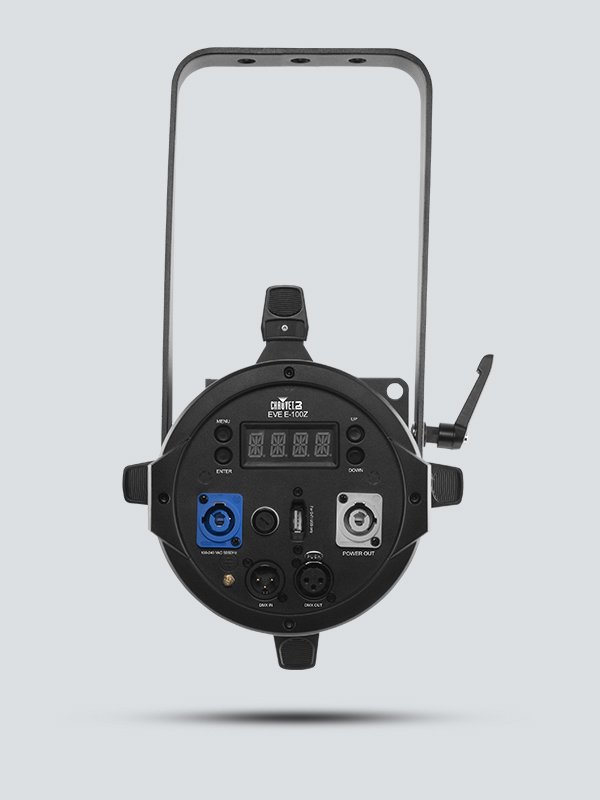

Built-In Info Screen and intuitive menu buttons for easy setup & DMX addressing
Specifications:
-
Light Source: Warm-white LED, 100 W, ~50,000 h lifespan
-
Beam Angle (Zoom): 14°–30° manual
-
Illuminance @ 2 m: 15,100 lux (14°), 3,800 lux (30°)
-
Illuminance @ 5 m: 3,238 lux (14°), 829 lux (30°)
-
DMX Channels: Selectable 1 or 3
-
Connectors: 3‑pin XLR DMX in/out
-
Strobe Rate: 0–30 Hz
-
Power Linking Capacity: 9 units at 120 V; 16 at 230 V
-
Power Input: 100–240 VAC, auto-ranging
-
Power Consumption: 106 W, 0.9 A @ 120 V; 103 W, 0.5 A @ 230 V
-
Color Temp: 3500 K; CRI: 80
-
Dimensions: 24″ × 7.2″ × 16.9″ (611 × 183 × 430 mm)
-
Weight: 12.6 lb (5.7 kg)
-
Approvals: CE, MET certified
LED Ellipsoidal shines a hard-edged, warm white spot in any directionEasily highlight areas by altering the projected beam with framing shuttersFlexibility to project from any distance using the Manual zoomIncludes gel frame holders for steel or glass gobos.Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
