Overview

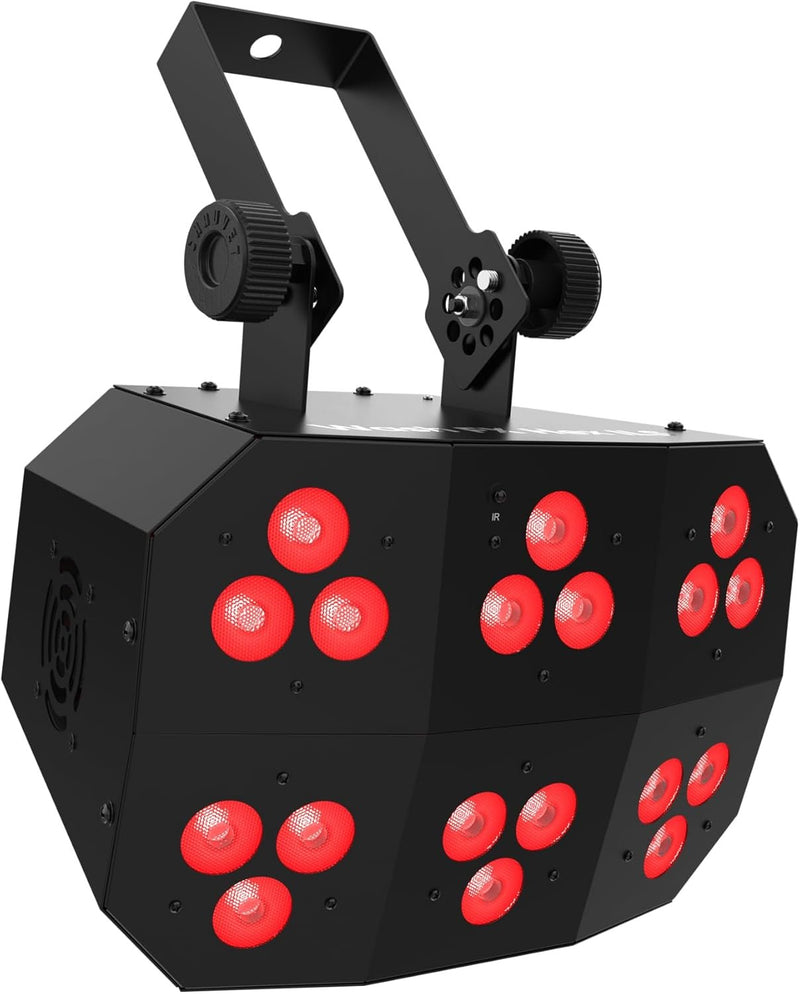

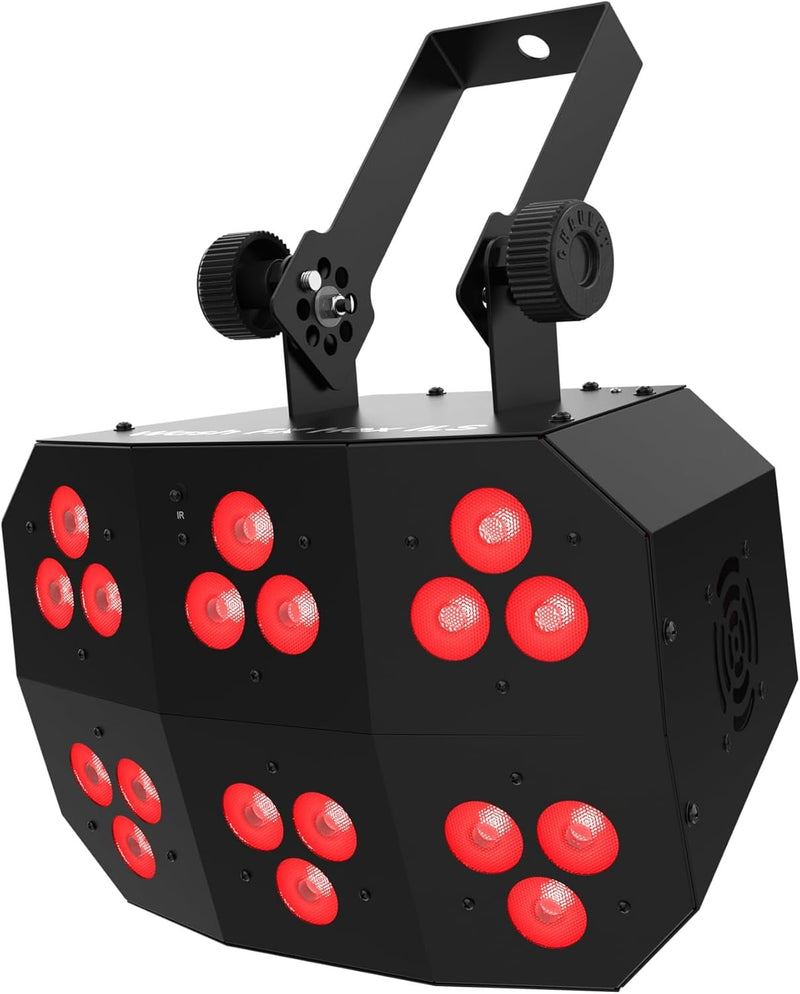

The Chauvet DJ Wash FX Hex ILS is an all-in-one LED effect fixture that delivers vivid chase, blinder bursts, and vibrant washes, making it essential for DJs, mobile entertainers, event professionals, and stage designers. Equipped with 18 hex-color RGBAW+UV LEDs, it provides a full spectrum of clean, shadow-free color and natural whites—with added UV pop. Six independently controllable zones allow dynamic lighting patterns, while built-in ILS, DMX, sound-activated, or IRC-6 control options give seamless synchronization and flexibility for any setup.
Despite its powerful output—3,204 lux at 2 m—the Wash FX Hex ILS is compact and lightweight (6.8 lb), with a quick-mount hanging bracket, auto-ranging power supply, and power linking capabilities. It’s ready to bring energetic visuals to stages, weddings, nightclubs, and corporate productions.
Features:
-
Multi-Effect Functionality – Chase, blinder, and wash in one unit
-

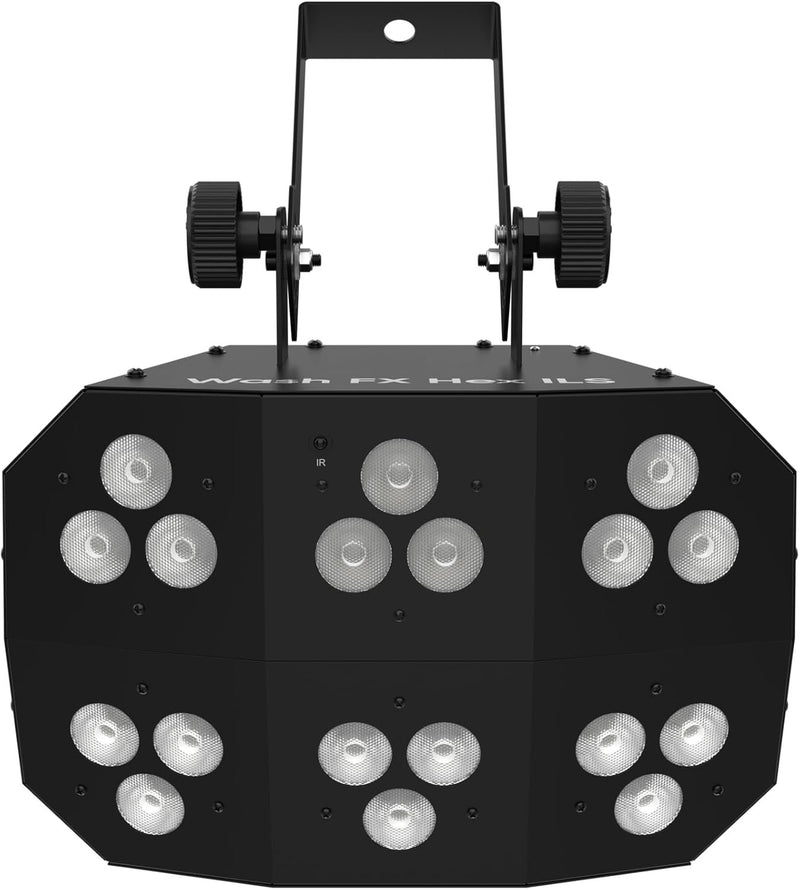

Hex-Color LEDs (RGBAW+UV) – 18×10 W LEDs for rich color blending without colored shadows
-
Six Chasing Zones – Independent control across zones for dynamic visuals
-
ILS & DMX Compatibility – Sync via ILS ecosystem or DMX 3/6/11/40-channel modes
-
Sound-Activated & IRC-6 Option – Stand-alone modes or remote operation
-
Power Linking – Daisy-chain up to 6 units at 120 V or 11 at 230 V
-
Compact & Durable – Auto-ranging 100–240 VAC input, rugged housing
Specifications:
-
LEDs: 18×10 W hex‑color (RGBAW+UV), 50,000 hr
-
Photometrics: 3,204 lux @ 2 m; beam 44°, field 77°
-

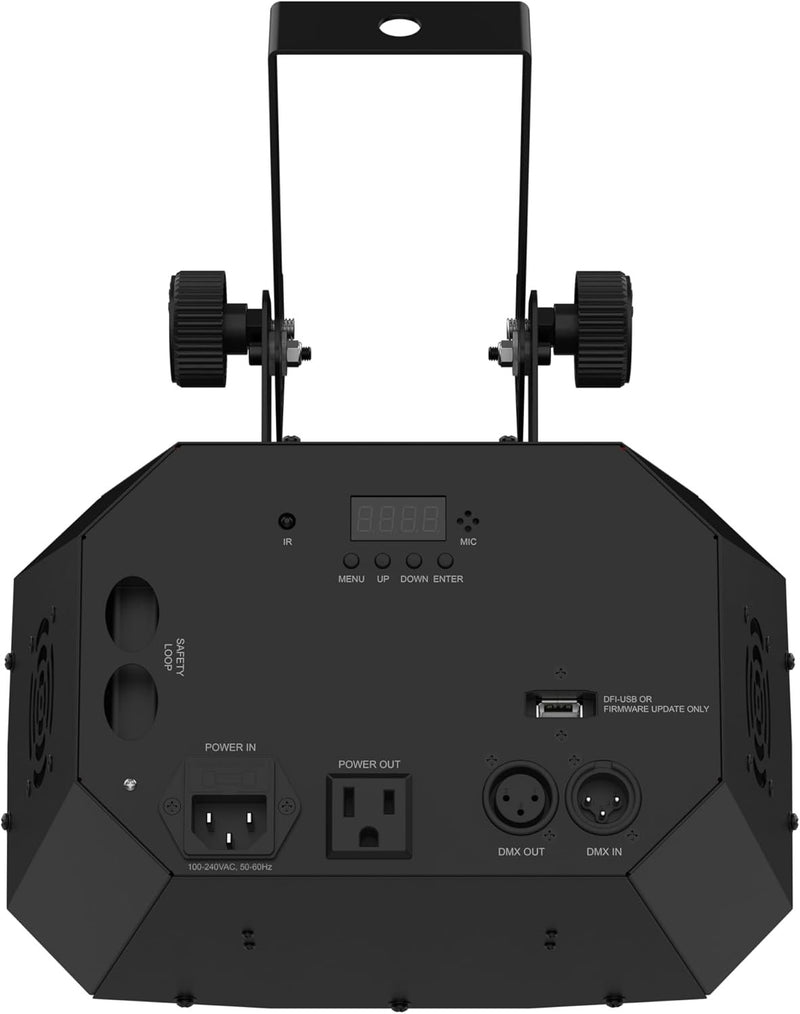

DMX Channels: 3, 6, 11, or 40; 3-pin XLR I/O
-
Strobe Rate: 0–20 Hz
-
Power: Auto-ranging 100–240 VAC, 50/60 Hz; 160 W (1.3 A @120 V)
-
Power Linking: 6 units @120 V / 11 units @230 V
-
Weight: 6.8 lb (3.1 kg)
-
Dimensions: 11.0″ × 9.5″ × 7.1″ (280 × 240 × 180 mm)
-
Control Modes: ILS, DMX, stand-alone, sound-active, IRC-6, master/slave
-
Certifications: CE, RoHS, UKCA
