Overview

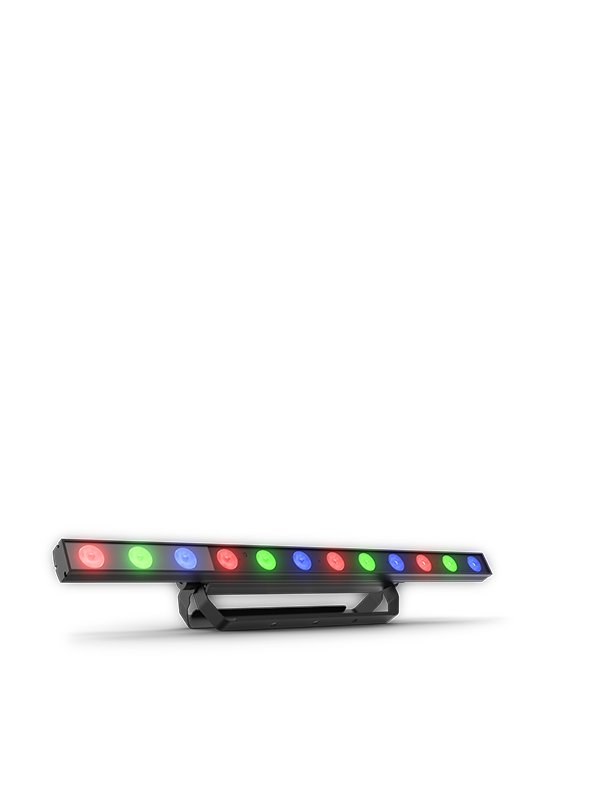

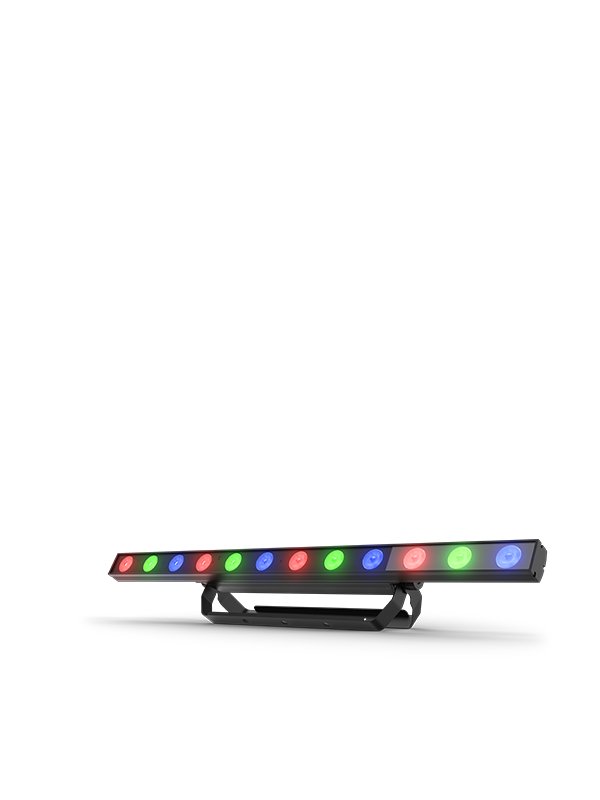

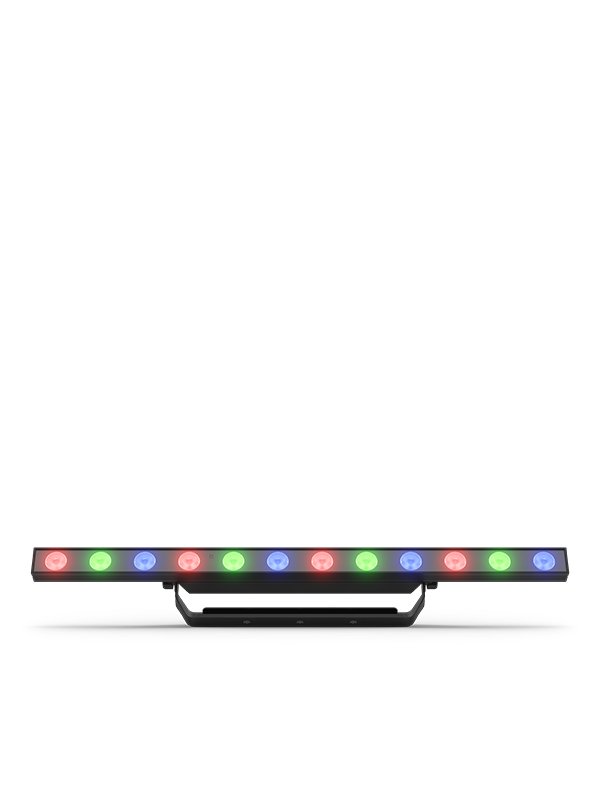

The Chauvet DJ COLORband Pix ILS is a professional-grade, full-size LED strip light that combines pixel-mapping, blinder bursts, and wall-wash capabilities in one sleek fixture. Equipped with 12 tri-color RGB LEDs, this unit enables intricate light animations and dynamic effects ideal for DJs, live events, broadcast, and photographic settings. Featuring a built-in RF receiver, it offers flexible wireless control via RFC/RFC‑XL remotes, D-Fi USB for master/slave without cables, and full DMX compatibility. It's also Integrated Lighting System (ILS) ready—so controlling synchronized shows across a CHAUVET ecosystem is seamless.

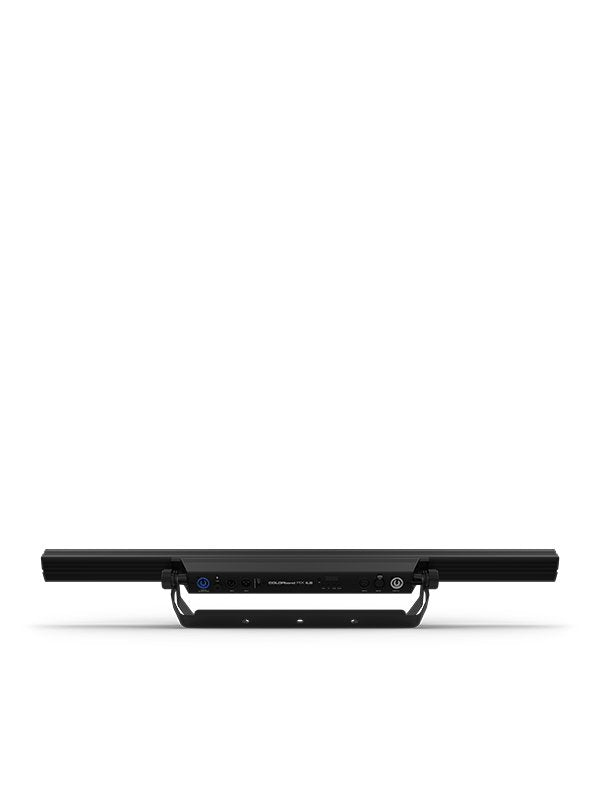

With flicker-free high-frequency dimming and silent operation, the COLORband Pix ILS is suitable for on-camera use and quiet environments. Its sturdy housing, powerCON connectors for daisy-chaining, and optional CHS‑60 VIP bag compatibility make it both durable and portable for touring or venue use.
Features:
-
Pixel-Mapping & Chase Effects – Individually control 12 LEDs for animations, chasing, blinds, and washes
-
Built-In RF Receiver – Works with optional RFC and RFC‑XL remotes for untethered operation
-
ILS Ecosystem Compatible – Seamlessly integrates with CHAUVET ILS fixtures
-
D‑Fi USB Wireless DMX – Enables master/slave wireless without DMX cables
-
Flicker-Free & Silent – High-frequency dimming eliminates camera flicker and noise
-
Multi-Protocol Control – 3/5-pin DMX, RFC, RFC‑XL, D‑Fi USB
-
Power Linking – Daisy-chain up to 19 units at 120 V or 35 at 230 V
-
Multiple DMX Modes – Supports 3, 4, 6, 7, 8, 9, 12, 18, 36, or 41 channels
-
Accessories Ready – Compatible with CHS‑60 gear bag for transport
Specifications:
-
LEDs: 12 × 3 W tri-color RGB, 50,000 hr
-
Beam Angle: 14° ; Field Angle: 27°
-
Illuminance: 4,142 lux @ 2 m; 663 lux @ 5 m
-
Power: 49 W, 0.7 A @ 120 V; 48 W, 0.4 A @ 230 V; 100–240 VAC auto-ranging
